SPLIT folding electric tricycle

AVAILABLE COLORS

FRAME & FORKS: yellow/blue/red/black

CASE OF TFWS: black

FRONT HUBS: silver/black

CRANKSET: silver/black

MOTOR: silver

GRIP: silver & grey

SPLIT folding electric tricycle

AVAILABLE COLOURS

HIGH RIDING PERFORMANCE

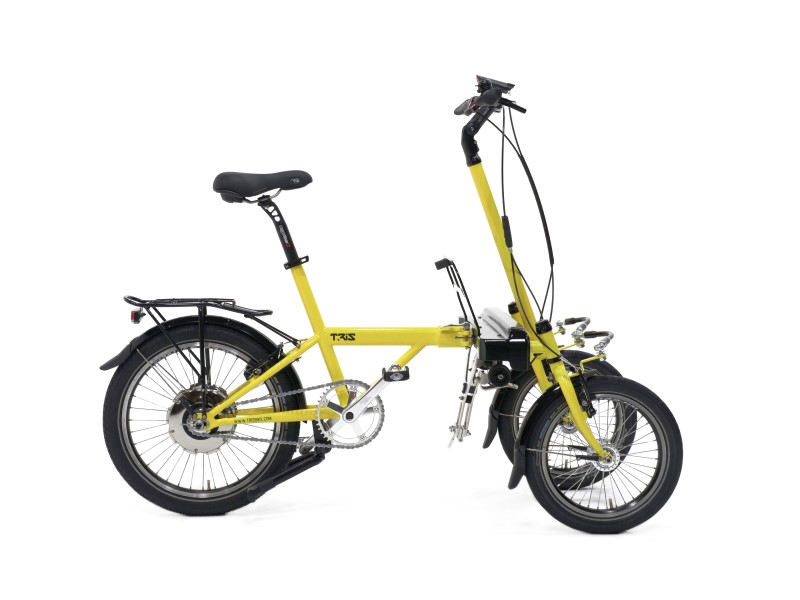

TRIS SPLIT is a tilting folding electric tricycle with the same riding dynamics of a traditional bicycle but at the same time, thanks to the two front wheels, much greater stability and safety. TRIS BIKE is not a rigid tricycle but a three wheeled bike for adults with two front tilting wheels that tilts when cornering like a traditional bike.

DYNAMIC AND STABLE RIDE

The patented tilting system that connects the two front tilting wheels to the frame ensures high manoeuvrability and agility when cornering with safety and total control. TRIS SPLIT is a folding electric tricycle for adults that combines the advantages of tricycles with the benefits of bicycles.

EASY STOP

In order to increase your comfort, TRIS BIKE is equipped with the Tilting Block System (TBS) which allows you, through the EASY STOP function, to stop and re-start at a traffic light without putting the feet on the ground.

EASY PARK

The Tilting Block System (TBS) allows you, through the EASY PARK function, to park your folding electric tricycle TRIS SPLIT without kickstand

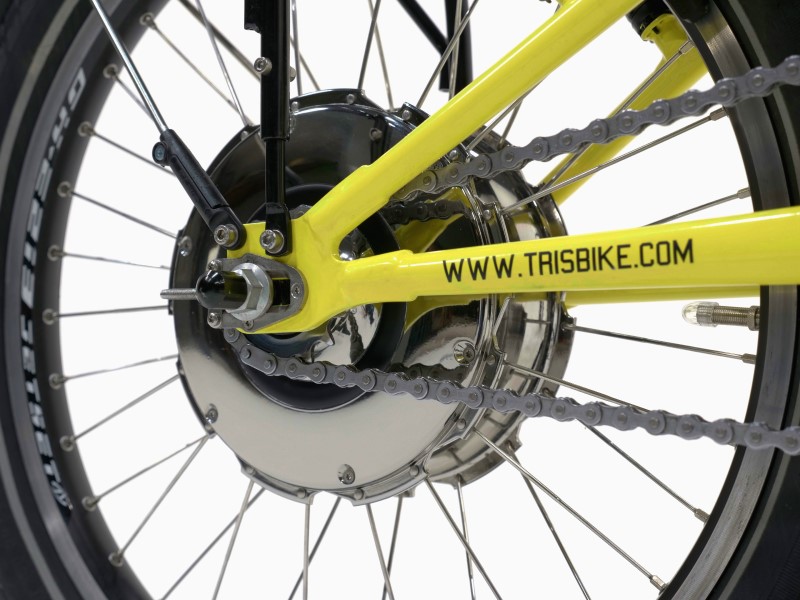

REAR MOTOR ‘ALL IN ONE’

TRIS SPLIT is an e-bike equipped with the Italian ‘BIKE all in one‘ rear motor from ZEHUS. No wires: motor (250 W-30 Nm), batteries (30V-172 Wh) and an innovative 4-sensor system are all integrated in the rear hub in just 3 kg. The maximum travel distance is approx. 35-40 km at maximum power. Full recharge in about 3 hours.

SMART BIKE

By downloading the free Bitride – Connect app (compatible with iOS & Android), you can connect the motor to your phone via Bluetooth and define your assistance level, manage your travel data and use GPS tracking. The motor can be equipped with a remote controller to operate a temporary boost of 40 Nm of torque and 500 W of power.

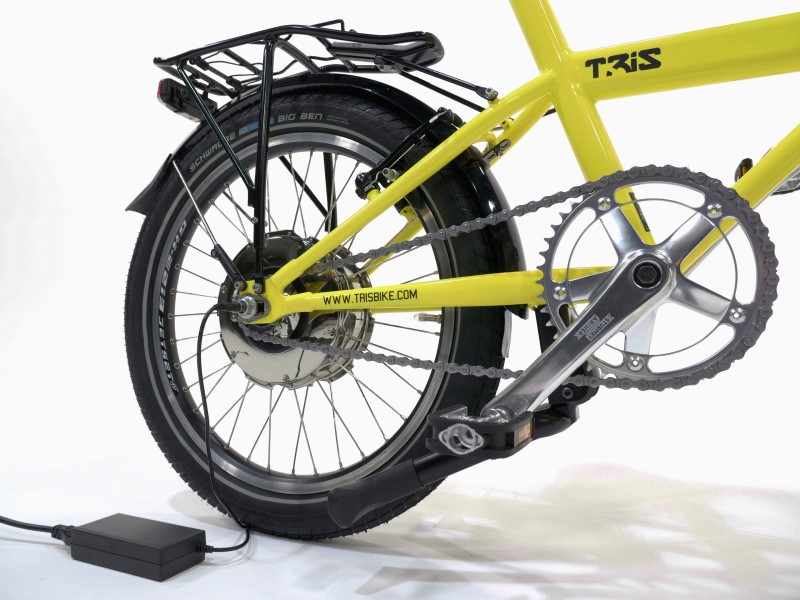

KERS

The integrated Kinetic Energy Recovery System (KERS) allows the motor to collect braking energy and recharge the batteries. You have to backpedal in order to activate KERS and, as a consequence, the bicycle will slow down. As soon as you stop backpedalling, the motor will stop braking.

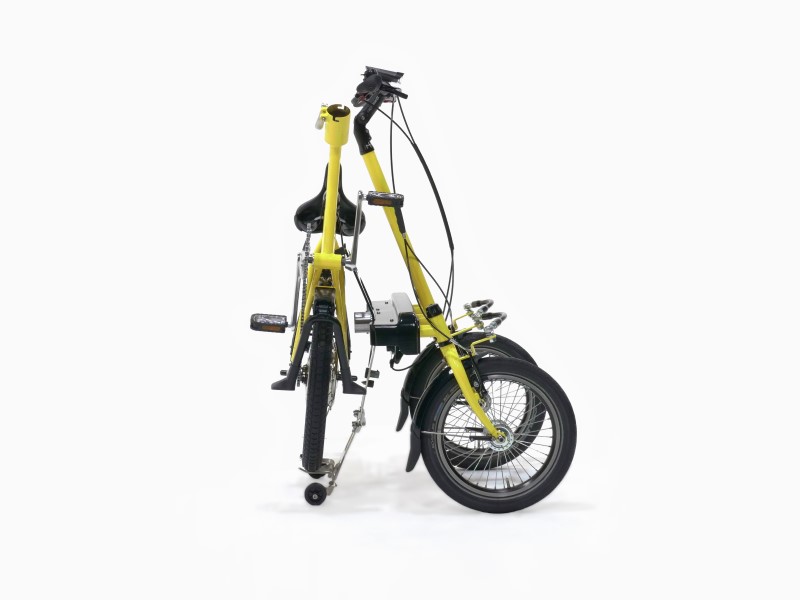

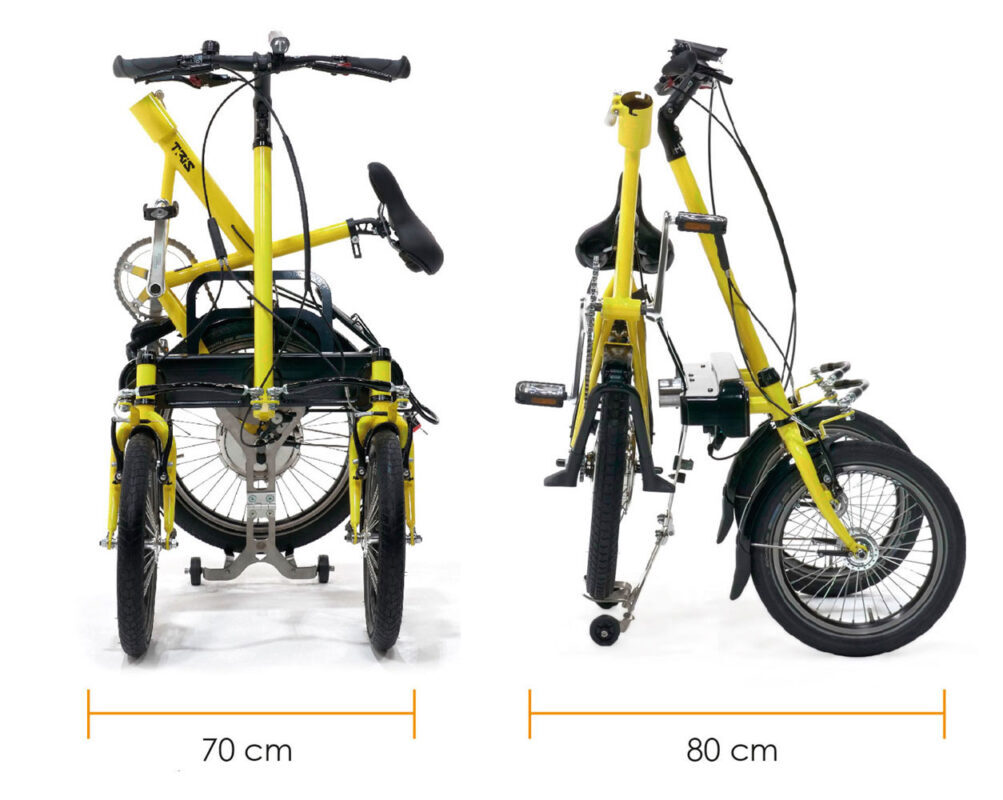

DIVISIBLE AND COMPACTABLE

Do you want to bring TRIS SPLIT into your flat using the lift? No problem, TRIS SPLIT is a folding electric trike that can be divided into two parts and compacted into a small volume (from L:150 x B:60 x H:113 cm to L:80 x B:70 x H:113 cm) in a matter of seconds.

Contact us for more info and orders

TECHNICAL DATA SHEET

  • TRIS SPLIT bicicletta a tre ruote
  • TRIS SPLIT bicicletta a tre ruote
SPLIT folding electric tricycle

FRAME & FORKS

Unisex, chromoly steel, fits all driver heights from 1,5 m to 1,95 m

FRAME & FORKS

Unisex, chromoly steel, fits all driver heights from 1,5 m to 1,95 m

MOTOR

ZEHUS All in one, 2nd Gen, rear hub, 250 W, 30 Nm (temporary boost: 500W, 40 Nm), KERS

MOTOR

ZEHUS All in one, 2nd Gen, rear hub, 250 W & 30 Nm (temporary boost of  500W & 40 Nm), KERS

MAX ASSISTED SPEED

25 km/h

MAX ASSISTED SPEED

25 km/h

RANGE

30+ km with full electric assistance

RANGE

30+ km with full electric assistance

BATTERY

Integrated in the rear hub, 30V Li-ion 172 Wh, life > 1.000 cycles

BATTERY

Integrated in the rear hub, 30V Li-ion 172 Wh, life > 1.000 cycles

CHARGING TIME

100% in only 3 hours with a charger

CHARGING TIME

100% in only 3 hours with a charger

CRANKSET

STURMEY-ARCHER FCT 64AA, 44 Teeth, Al 7075

CRANKSET

STURMEY-ARCHER FCT 64AA, 44 Teeth, Al 7075

REAR SPROCKET

SHIMANO, 16 Teeth

REAR SPROCKET

SHIMANO, 16 Teeth

CHAIN

KMC, anti rust

CHAIN

KMC, anti rust

PEDALS

ERGOTEC 191, aluminium alloy with rubber surface, industrial ball bearing

PEDALS

ERGOTEC 191, aluminium alloy with rubber surface, industrial ball bearing

RIMS

Aluminium alloy, double wall, 36 holes, 20” rear and 16” front

RIMS

Aluminium alloy, double wall, 36 holes, 20” rear and 16” front

TIRES

SCHWALBE Marathon, 20” 47-406 rear and 16” 47-305 front

TIRES

SCHWALBE Marathon, 20” 47-406 rear and 16” 47-305 front

FRONT HUBS

STURMEY-ARCHER HBT30, Al 7075

FRONT HUBS

STURMEY-ARCHER HBT30,
Al 7075

SPOKES

SAPIM, silver, stainless steel

SPOKES

SAPIM, silver, stainless steel

BRAKE SYSTEM

SACCON, front and rear mechanical V-brakes

BRAKE SYSTEM

SACCON, front and rear mechanical V-brakes

HANDLEBAR

ERGOTEC, 31.8 mm, Al 6061 T6

HANDLEBAR

ERGOTEC, 31.8 mm, Al 6061 T6

GRIPS

ERGOTEC Frisko 2

GRIPS

ERGOTEC Frisko 2

STEM RISER

ERGOTEC Octopus Ahead 50, 31.8, Al 6061 T6, adjustable 0°- 60°

STEM RISER

ERGOTEC Octopus Ahead 50, 31.8, Al 6061 T6, adjustable 0°- 60°

HEADSETS

ERGOTEC A118AC-ES, 1 1/8″ Aluminium headset threadless with sealed cartridge bearings

HEADSETS

ERGOTEC A118AC-ES, 1 1/8″ Aluminium headset threadless with sealed cartridge bearings

SEAT POST

ERGOTEC Hook Evolution 31.6 x 400, Al 6061 T6

SEAT POST

ERGOTEC Hook Evolution 31.6 x 400, Al 6061 T6

SADDLE

SELLE ROYAL Freeway, unisex, with royal gel

SADDLE

SELLE ROYAL Freeway, unisex, with royal gel

KICKSTAND

URSUS Big Foot, aluminium alloy

KICKSTAND

URSUS Big Foot, aluminium alloy

FRONT LIGHT

SPANNINGA Axendo 40, removable & USB-rechargeable

FRONT LIGHT

SPANNINGA Axendo 40, removable & USB-rechargeable

 REAR LIGHT

SPANNINGA Solo XBA, with light-motion sensor

REAR LIGHT

SPANNINGA Solo XBA, with light-motion sensor

MUDGUARDS

SKS, rear and front

MUDGUARDS

SKS, rear and front

LOAD CAPACITY

FRONT: 7 kg      CENTRAL: 20 kg      REAR: 25 kg

LOAD CAPACITY

FRONT: 7 kg CENTRAL: 20 kg REAR: 25 kg

FRONT CARRIER

RIXEN & KAUL KLICK FIX , Vario Rack or Lamello basket (18 l) included

FRONT CARRIER

RIXEN & KAUL KLICK FIX , Vario Rack or Lamello basket (18 l) included

CENTRAL CARRIER

TRIS Bike design, with elastic string, max width of luggage: 12 cm

CENTRAL CARRIER

TRIS Bike design, with elastic string, max width of luggage: 12 cm

REAR CARRIER

ATRAN VELO Active, aluminium alloy

REAR CARRIER

ATRAN VELO Active, aluminium alloy

WEIGHT

30 kg, Rear part: 12 kg, Front part: 18 kg

WEIGHT

30 kg, Rear part: 12 kg, Front part: 18 kg

DIMENSIONS

L:150 x W:60 x H:113 cm / Compacted: L:80 x W:70 x H:113 cm

DIMENSIONS

L:150 x W:60 x H:113 cm
Compacted:
L:80 x W:70 x H:113 cm

MAX RIDER WEIGTH

110 kg

MAX RIDER WEIGTH

110 kg
